Showroom Chodthanawat 1 - Bangna KM.1

Projects

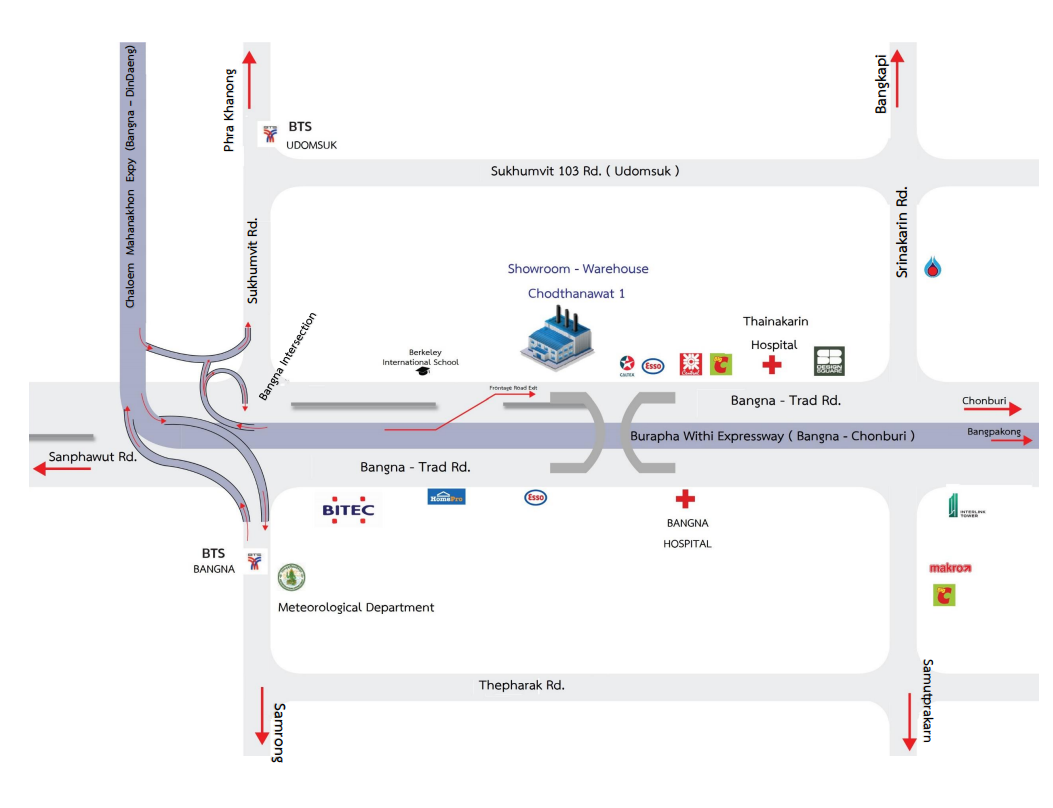

Debaratana Road km. 1, between BITEC U-turn bridge (outbound), connecting Sukhumvit/Srinakarin Road, approaching Central Bangna, close to Bangna-Tha Ruea Expressway, Bangna-Bang Pakong Expressway, Bangkok-Chonburi Newline Outer Ring Road (Motorway) and Suvarnabhumi Airport, with convenient transportation.

Project infomation

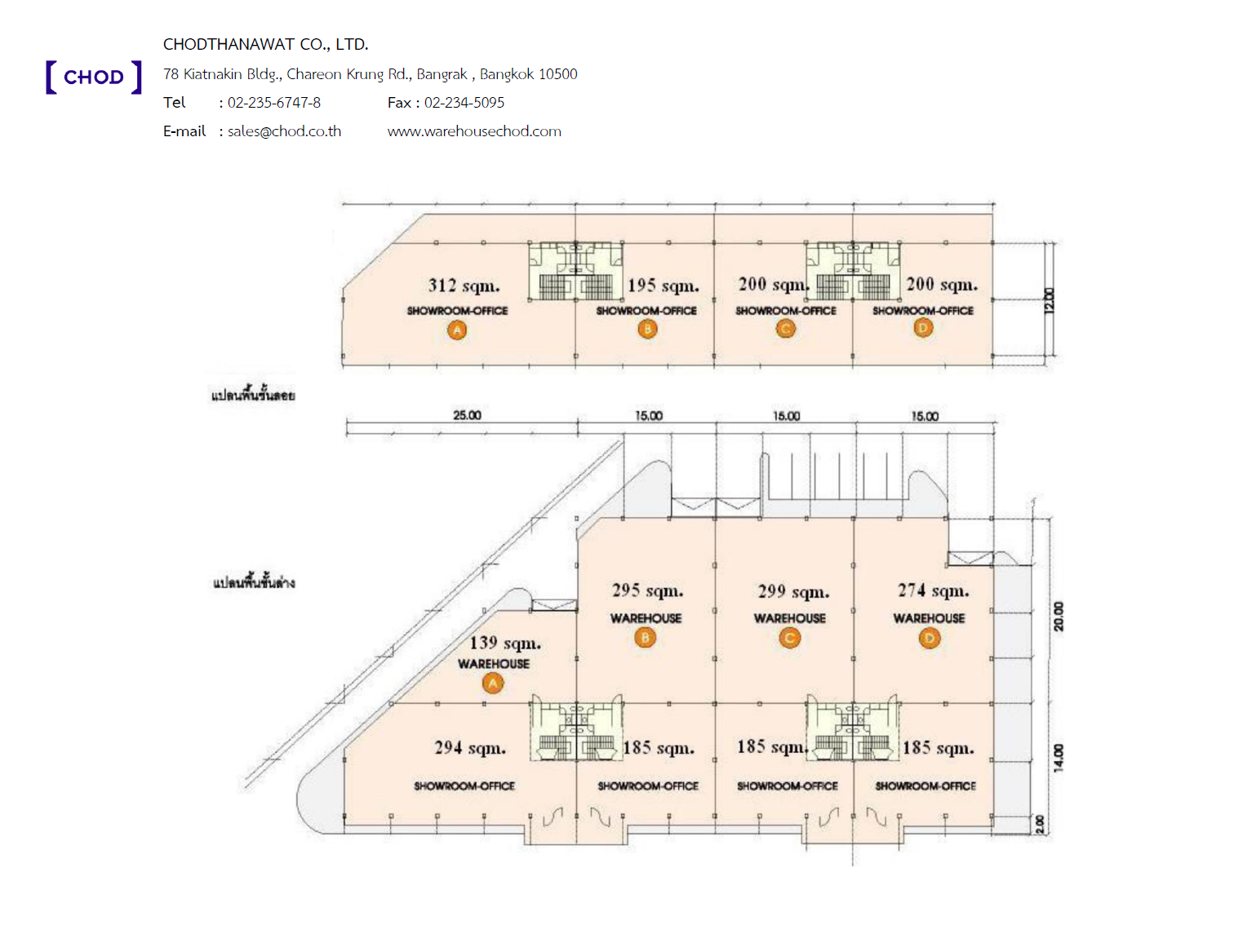

Warehouse Space	:	650 - 800 Sq.m.
Office Space	:	100 - 300 Sq.m.
Structure	:	2-level reinforced concrete in Workshop Showroom / office height 3.5 – 4 meters, Service Center 7.5 meters
Roof	:	Aluzinc with ventilation system.
Ceiling	:	T-bar (ventilated service center)
Wall	:	Interior : concrete block 4", gouged wall (painted). Exterior : concrete block 4", cement-coated.
Floor	:	Showroom / Office: rubber tile with live load up to 300 kg/sq.m. Warehouse: cement screed with live load up to 2 tons/sq.m.
Door - Window	:	Transparent glass, aluminum frame, painted steel.
Service Center Door	:	Roller shutter, width 4.5 x 4.5 m.
Electricity	:	30 Amp (3 phases, 4 wires) High Bay light.
Fire Protection System	:	Fire protection system based on standard of building.
Parking Space	:	In front of building (available for trailer).
Road in Area	:	Concrete road, width 10 - 15 m. for container vehicles.
